Shading Net Machine-WMH

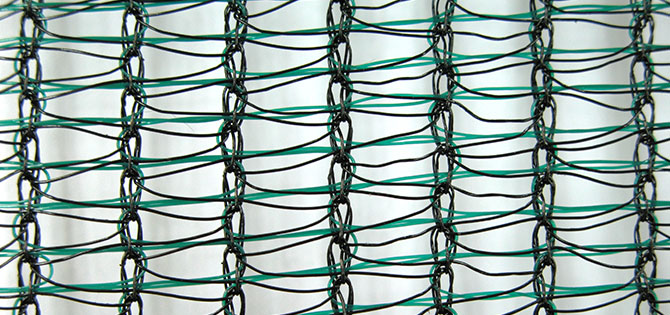

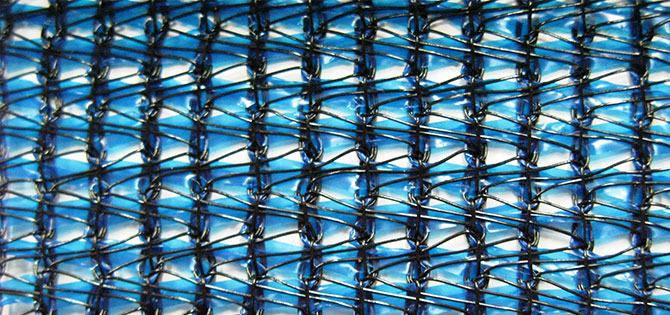

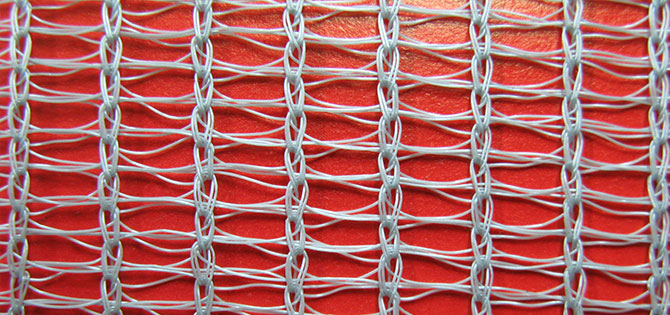

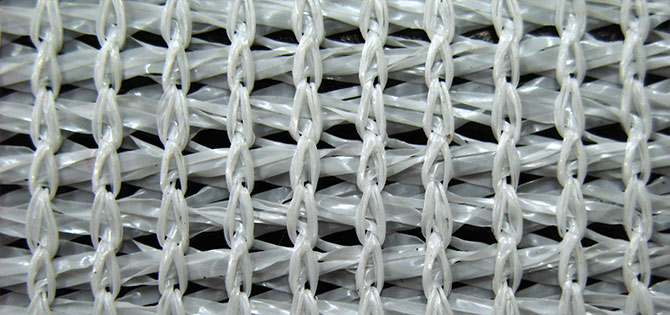

Mosquito nets, vegetable net bags, bird nets, building safety nets, protection nets, patterned curtains, coarse curtain nets, industrial cloths, agricultural use nets, shore fabrics, hexagonal tulle, outerwear fabrics, scallop nets, packing (for potato, onion, fruit) etc.
Share this:
High Speed Raschel Knitting Machines
- Rugged, distortion - proof welded steel construction.
- Main drive by special cams, which are dynamically balanced, and run in oil in the machine bed.
- Machines available for widely different applicants.
- Applications from fine mesh to coarse mesh available.
- Suitable for Round Yarn & Flat Yarn.
- Lower investment and high returns.
- Main applications.
-Nets for agricultural, construction and sports use, such as shade net, green house net, anti-birds & insects net, wind break net, building safety nets, mosquito nets, industrial cloths, football gate net & packing nets (for potato, onion, fruit) etc.
Main Product
Raschel Knitting Machine, Shading Net Machine, Safety Net Machine, Fishing Net Machine, Onion Bag Machine.
Mosquito nets, vegetable net bags, bird nets, building safety nets, protection nets, patterned curtains, coarse curtain nets, industrial cloths, agricultural use nets, shore fabrics, hexagonal tulle, outerwear fabrics, scallop nets, packing (for potato, onion, fruit) etc.
| Model | WMH |
|---|---|
| Applicable Yarn | HDPE Flat Yarn, Monofilaments, Polyester, Rayon, Nylon, TC, TR |
| Working Width | 130" - 210" |
| Gauges | 2 - 18 needle per inch |
| Warp Supply System | From: * Warping Beams / Creel Stand / Slitting Extension M / C |
| Performance | 300 - 450 rpm |
| Number of Bars | 2 - 8 Ground Bars (2 - 16 Pattern Bars Available) |
| Main Motor | 2.2kw - 7.5kw |
| Machine Weight | 4500kgs - 7000kgs |
