Raschel Knitting Machines
Showcase selected projects in a sylish grid arrangement.
-
Feature

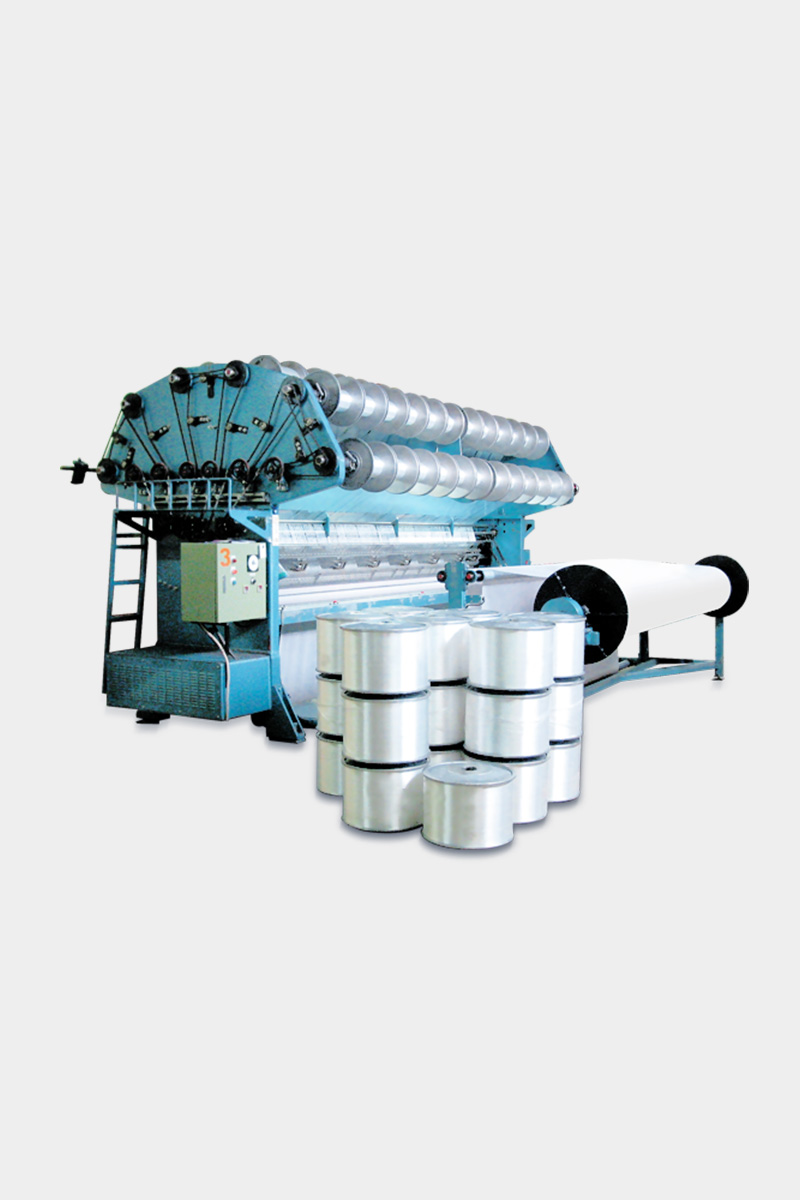

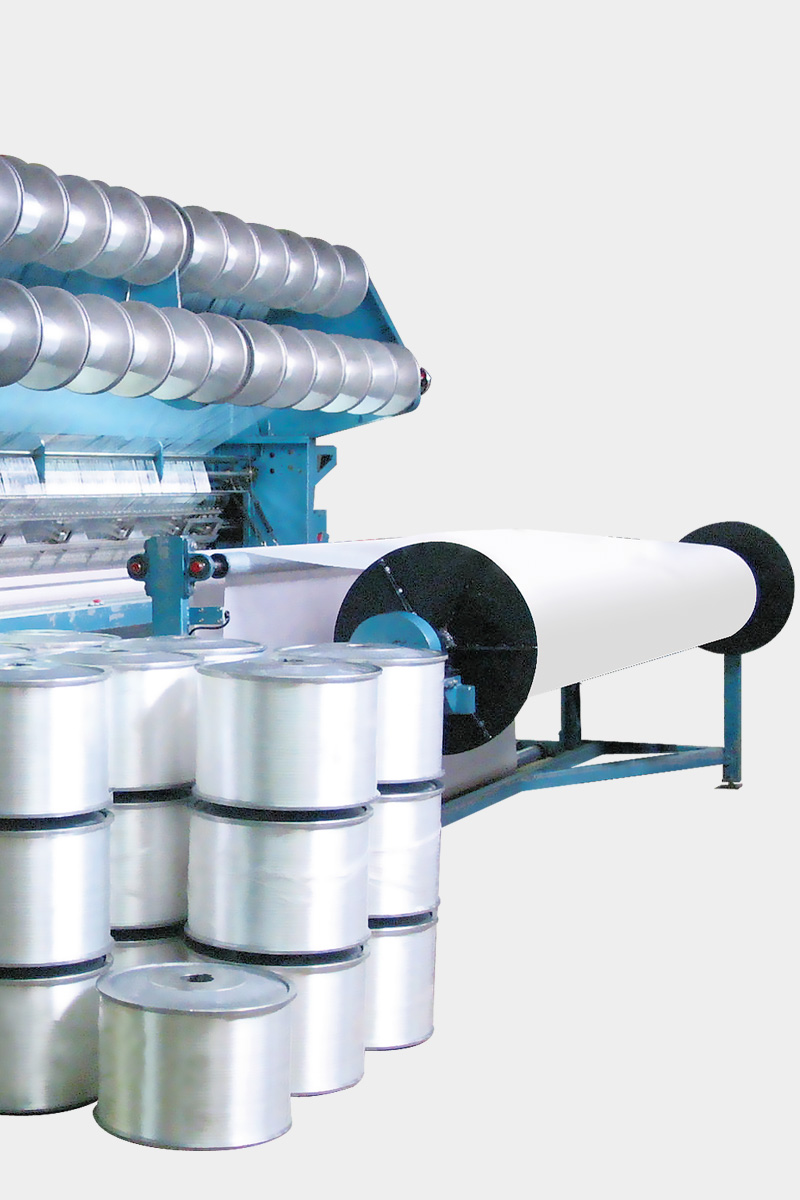

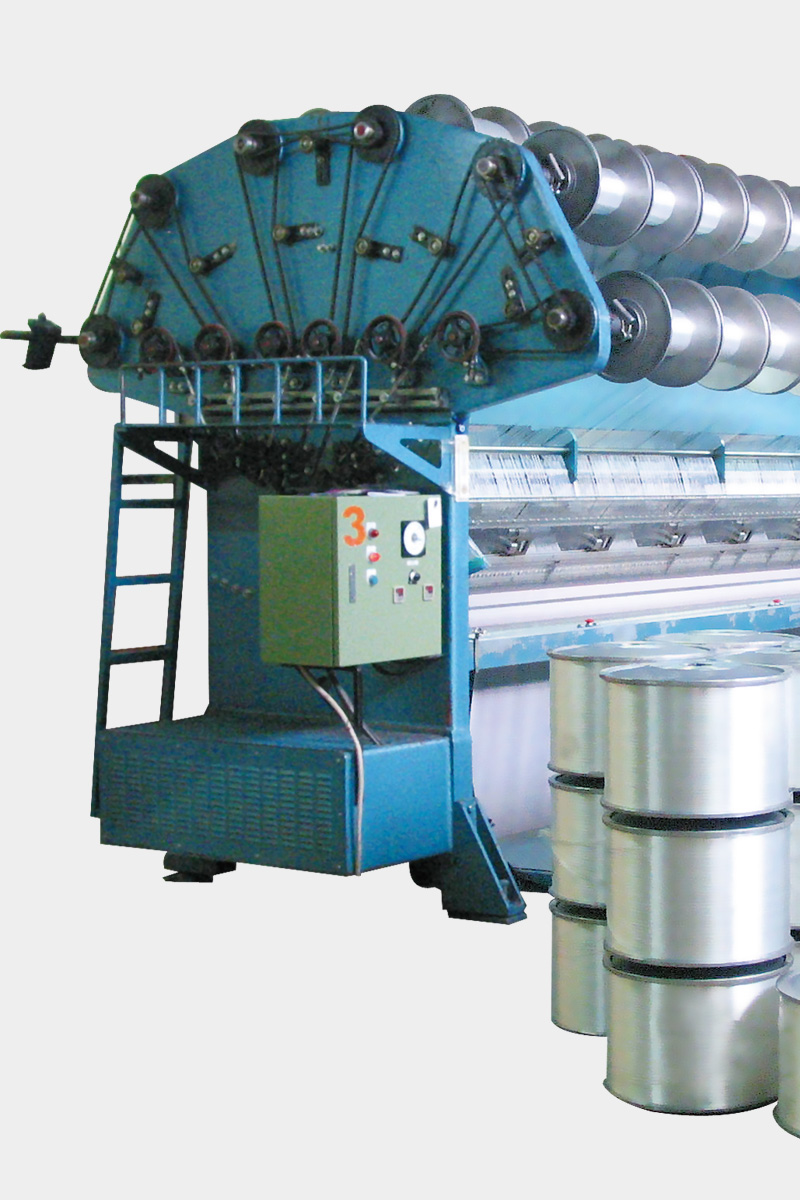

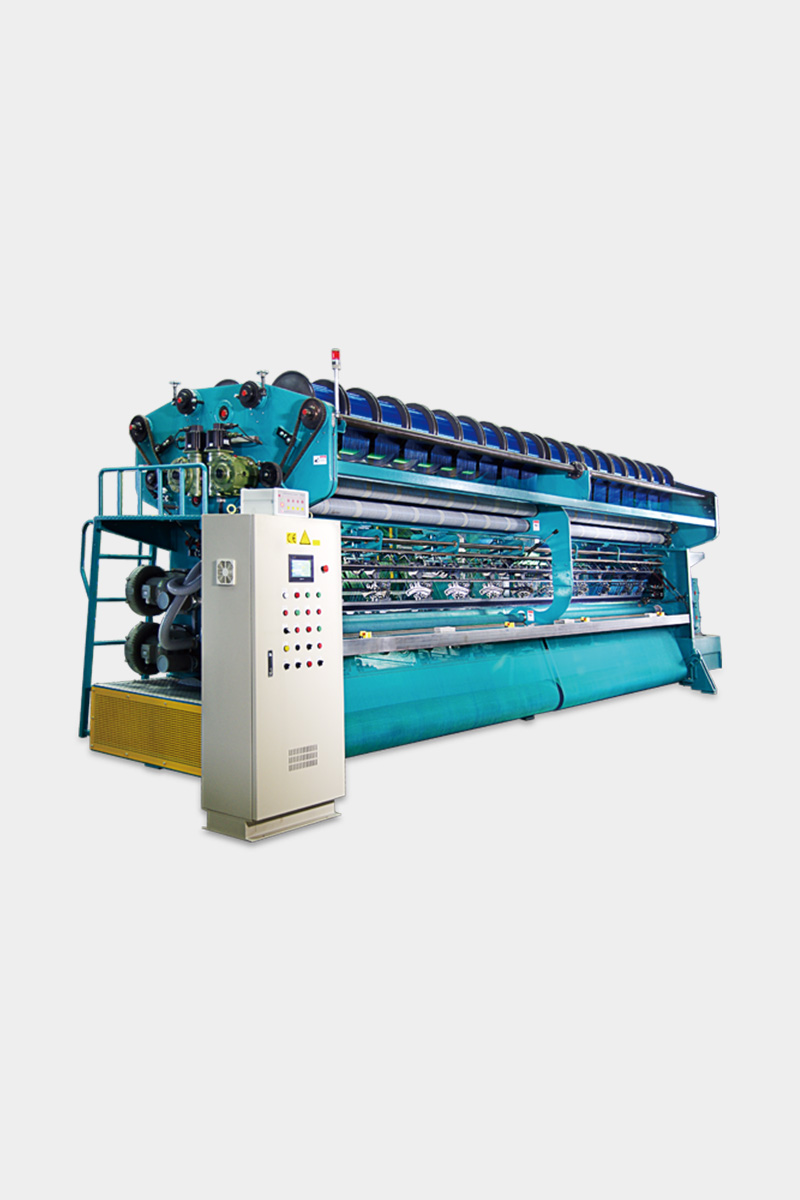

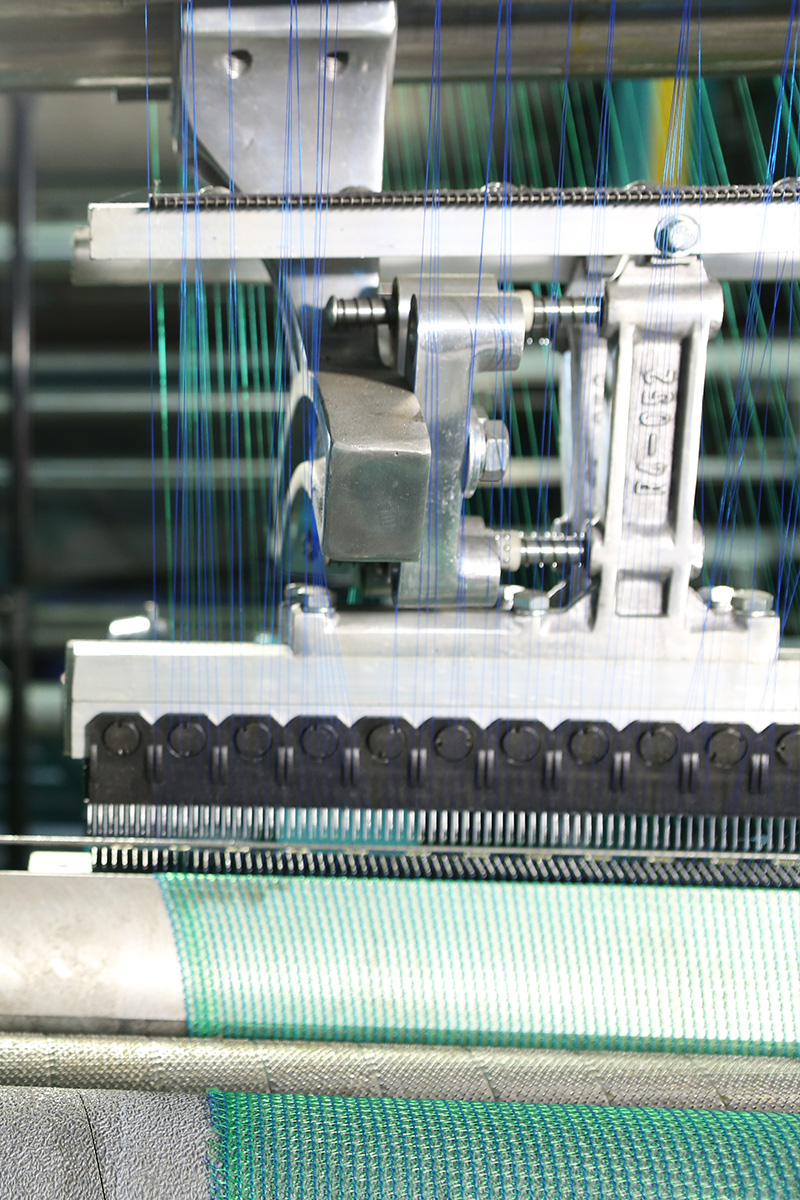

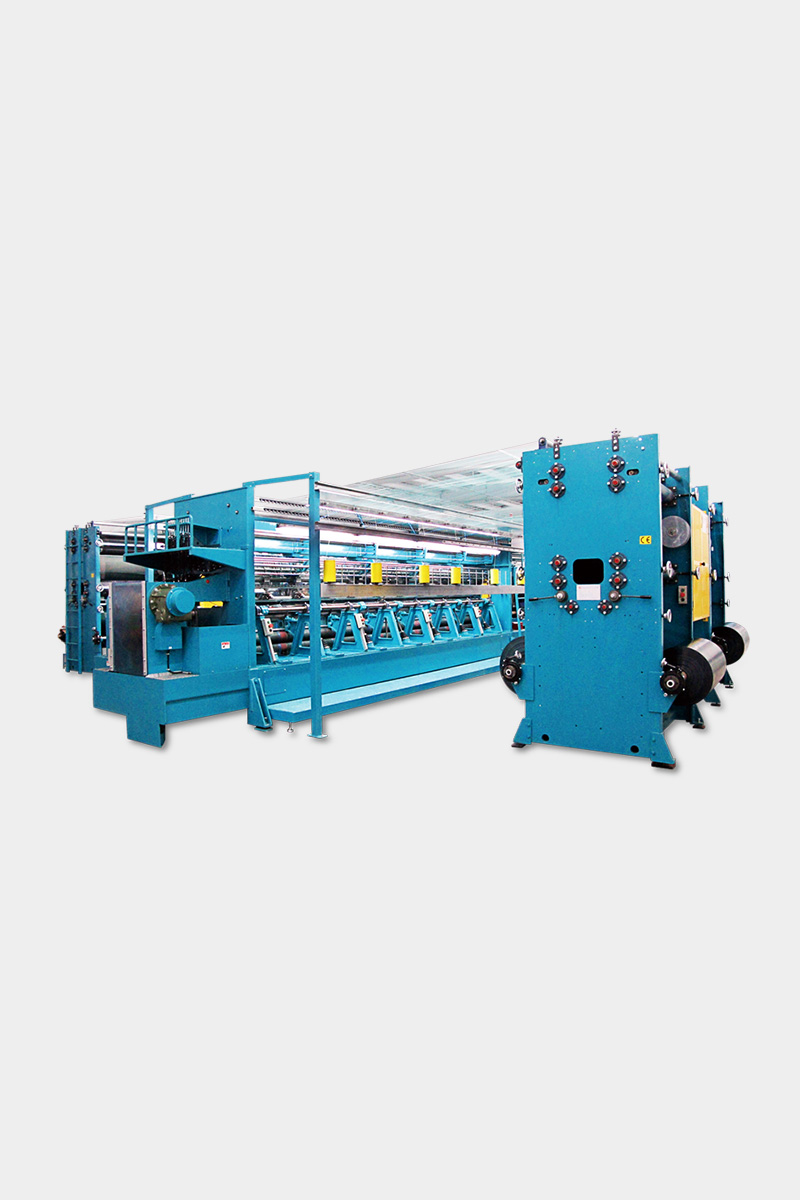

High Speed Raschel Knitting Machines
- Rugged, distortion - proof welded steel construction.
- Main drive by special cams, which are dynamically balanced, and run in oil in the machine bed.
- Machines available for widely different applicants.
- Applications from fine mesh to coarse mesh available.
- Suitable for Round Yarn & Flat Yarn.
- Lower investment and high returns.
- Main applications.
- Nets for agricultural, construction and sports use, such as shade net, green house net, anti-birds & insects net, wind break net, building safety nets, mosquito nets, industrial cloths, football gate net & packing nets (for potato, onion, fruit) etc.
-
Applications

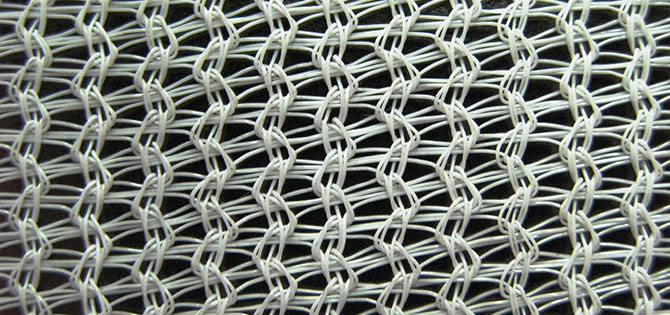

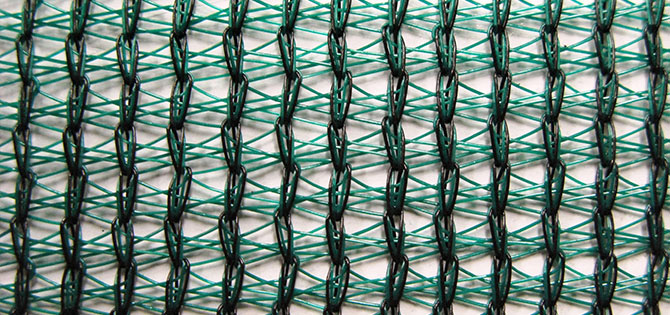

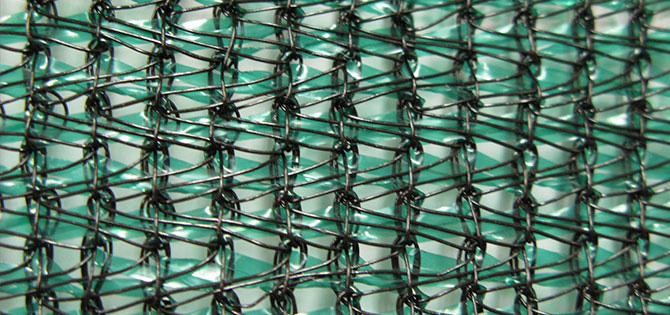

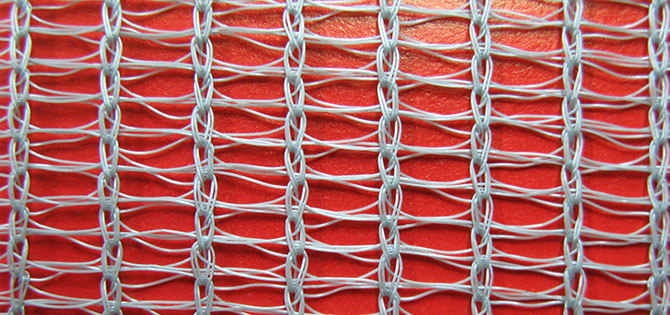

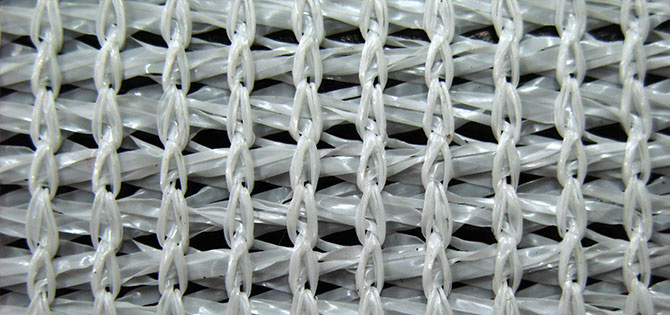

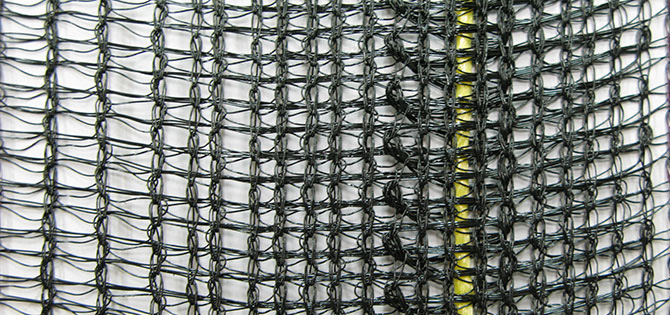

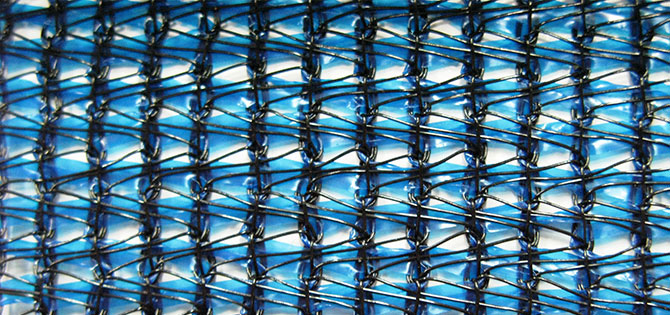

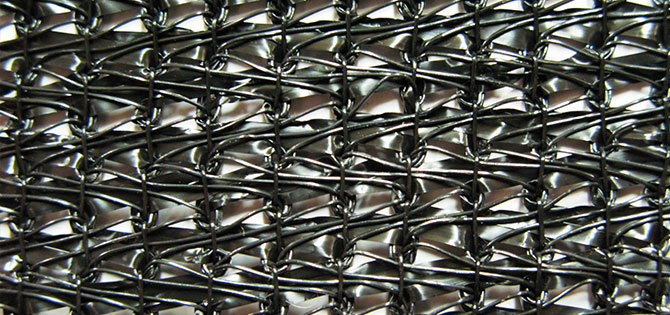

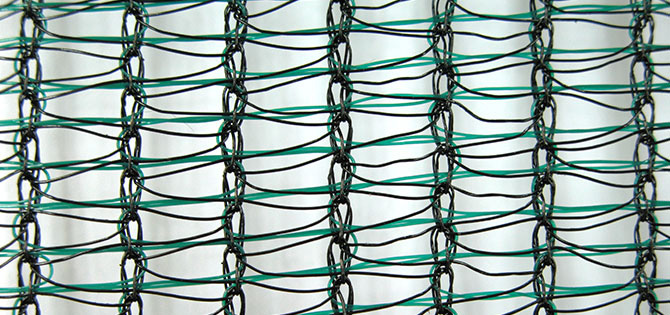

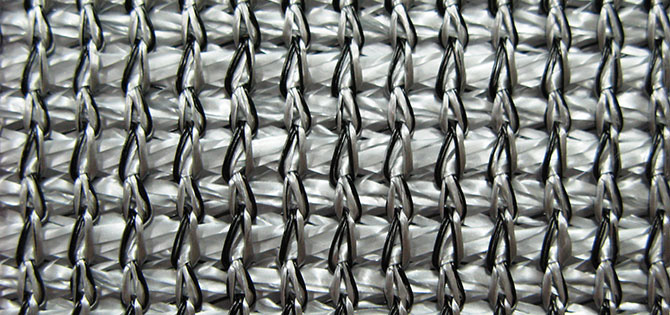

Mosquito nets, vegetable net bags, bird nets, building safety nets, protection nets, patterned curtains, coarse curtain nets, industrial cloths, agricultural use nets, shore fabrics, hexagonal tulle, outerwear fabrics, scallop nets, packing (for potato, onion, fruit) etc.
-
Specification
-
Model
- Applicable Yarn
- Working Width
- Gauges

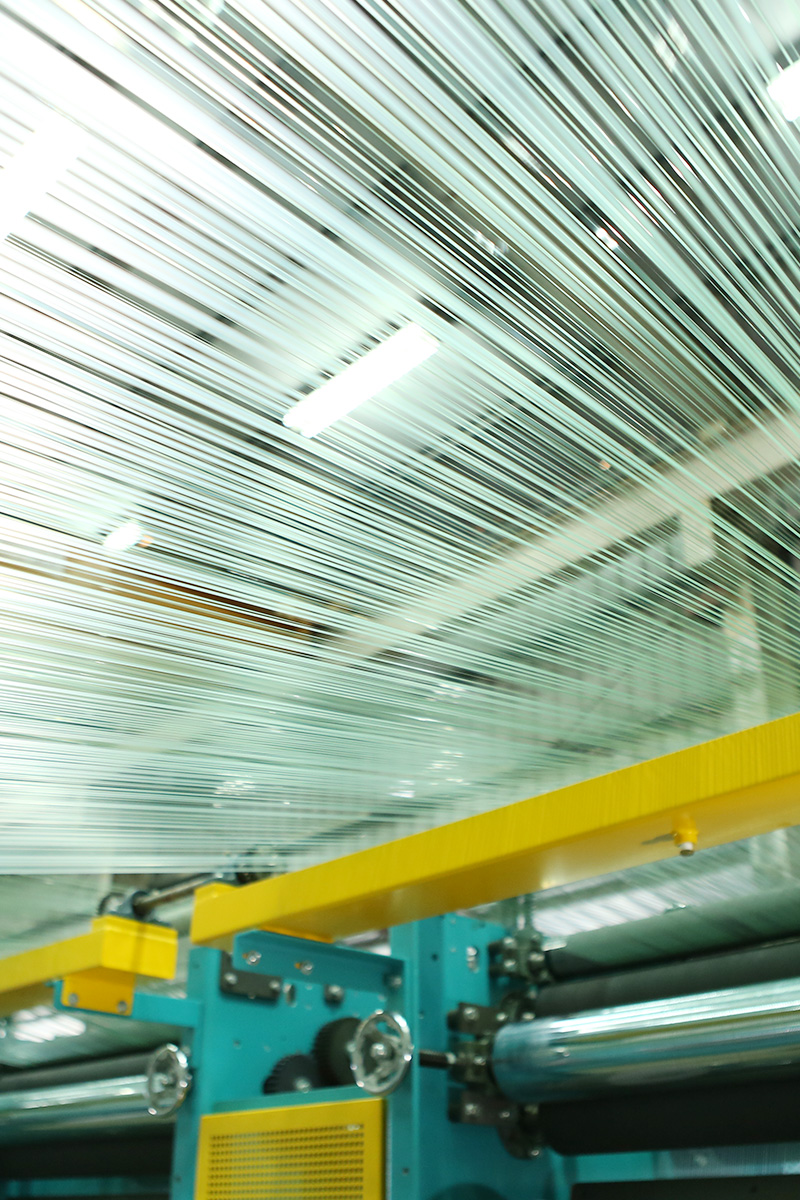

- Warp Supply System
- Performance
- Number of Bars
- Main Motor
- Machine Weight
-
WMH
- HDPE Flat Yarn, Monofilaments, Polyester, Rayon, Nylon, TC, TR
- 130" - 210"
- 2 - 18 needle per inch
- From: * Warping Beams / Creel Stand / Slitting Extension M / C
- 300 - 450 rpm
- 2 - 8 Ground Bars (2 - 16 Pattern Bars Available)
- 2.2kw - 7.5kw
- 4500kgs - 7000kgs
-
