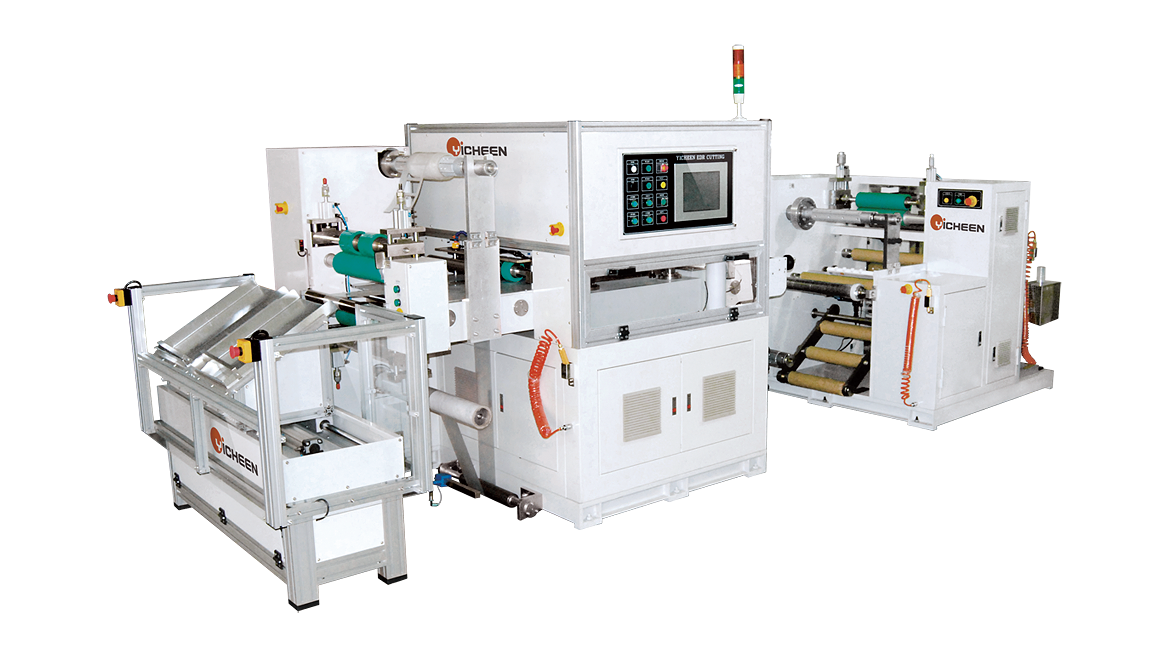

Model | ED-0303U | ED-0505U | ED-0808U |
Cutting force | 3 tons Max | 3 tons Max | 5 tons Max |
Cutting size | W250xL(D)250mm | W450xL(D)450mm | W750xL(D)750mm |
Material thickness | 0.05~0.3mm | 0.05~0.3mm | 0.05~0.3mm |
Feeding precision | +/-0.10mm | +/-0.10mm | +/-0.10mm |
Punching level precision | +/-0.025mm | +/-0.025mm | +/-0.025mm |
Power consumption | 6KW | 6KW | 8KW |
Specifications are subject to change without notice for design improvement.
The specification can be designed by customers demand.
Model | ED-1010U | ED-1212U | ED-1515U |
Cutting force | 8 tons Max | 10 tons Max | 12 tons Max |
Cutting size | W950xL(D)950mm | W1150xL(D)1150mm | W1450xL(D)1450mm |
Material thickness | 0.05~0.3mm | 0.05~0.3mm | 0.05~0.3mm |
Feeding precision | +/-0.10mm | +/-0.10mm | +/-0.10mm |
Punching level precision | +/-0.025mm | +/-0.025mm | +/-0.025mm |
Power consumption | 8.5KW | 16KW | 24Kw |
Specifications are subject to change without notice for design improvement.
The specification can be designed by customers demand.
